Name: NTN Thrust Roller Bearings AS5578
Brand: NTN
SKU: AS5578
Rating: 4.7 (120 reviews)

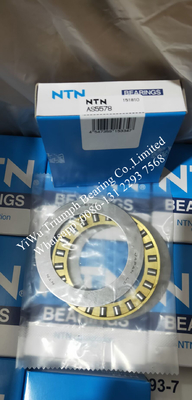

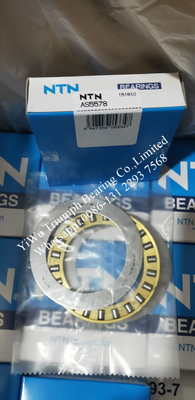

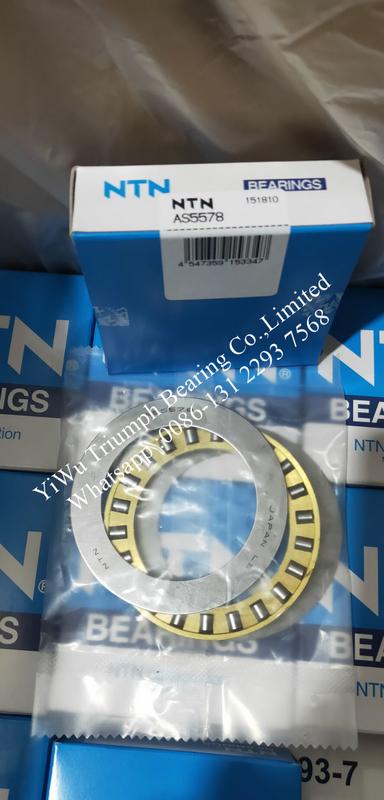

NTN Thrust Roller Bearings AS5578

Product Details:

Place of Origin:	Japan
Brand Name:	NTN
Model Number:	AS5578

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Carton Box
Delivery Time:	1 day upon your payment
Payment Terms:	PayPal , Western Union, T/T, MoneyGram

Contact Now

Detailed Product Description

NTN AS5578 Bearings Details:

Bearingstypes	AS5578
new types	AS5578
old types	AS557801 bearing
productstypes	AS5578
categories	ThrustRollerBearings
brands	NTN
ID d ( mm )	55
OD D ( mm )	78
thickness B ( mm )	1

Part No.	ID/mm	OD/mm	W/mm	Weight/g	Load Rating(KN)		Limited speed
					Cr/KN	Cor/KN	(r/min)
AXK0414	4	14	2	0.7	4.4	8	21000
AXK0515	5	15	2	0.8	4.75	9.2	21000
AXK0619	6	19	2	1	6.8	15.5	19000
AXK0821	8	21	2	2	7.8	19.4	18000
AXK1024	10	24	2	3	9.2	25.5	17000
AXK1226	12	26	2	3	9.9	29	15000
AXK1528	15	28	2	4	11.3	36	13000
AXK1730	17	30	2	4	11.9	39.5	12000
AXK2035	20	35	2	5	13.1	46.5	10000
AXK2542	25	42	2	7	14.7	58	8500
AXK3047	30	47	2	8	16.3	70	7500
AXK3552	35	52	2	10	17.8	81	6500
AXK4060	40	60	3	16	28	114	6000
AXK4565	45	65	3	18	30	128	5000
AXK5070	50	70	3	20	32	143	4800
AXK5578	55	78	3	28	38	186	4300
AXK6085	60	85	3	33	44.5	234	4000
AXK6590	65	90	3	35	46.5	255	3700
AXK7095	70	95	4	60	54	255	3500
AXK75100	75	100	4	61	55	265	3300
AXK80105	80	105	4	63	56	280	3100
AXK85110	85	110	4	67	28	290	3000
AXK90120	90	120	4	86	73	405	2700
AXK100135	100	135	4	104	91	560	2500
AXK110145	110	145	4	122	97	620	2300
AXK120155	120	155	4	131	102	680	2100
AXK130170	130	170	5	205	133	840	1900
AXK140180	140	180	5	219	138	900	1800
AXK150190	150	190	5	232	143	960	1700
AXK160200	160	200	5	246	148	1020	1600

Shaft	thrust needle and	thrust ring	bearing	seat ring	shaft ring	dc1	d1	dc
diameter mm	retainer assembly	gaskets	gaskets
4	AXK0414TN	AS 0414	--	--	--	4	--	14	--
5	AXK0515TN	AS 0515	--	--	--	5	--	15	--
6	AXK0619TN	AS 0619	LS 0619	--	--	6	--	19	--
8	AXK0821TN	AS 0821	LS 0821	--	--	8	--	21	--
10	AXK1024	AS 1024	LS 1024	--	--	10	--	24	--
12	AXK1226	AS 1226	LS 1226	--	--	12	--	26	--
15	AXK1528	AS 1528	LS 1528	GS 81102	WS 81102	15	16	28	28
17	AXK1730	AS 1730	LS 1730	GS 81103	WS 81103	17	18	30	30
20	AXK2035	AS 2035	LS 2035	GS 81104	WS 81104	20	21	35	35
25	AXK2542	AS 2542	LS 2542	GS 81105	WS 81105	25	26	42	42
30	AXK3047	AS 3047	LS 3047	GS 81106	WS 81106	30	32	47	47
35	AXK3552	AS 3552	LS 3552	GS 81107	WS 81107	35	37	52	52
40	AXK4060	AS 4060	LS 4060	GS 81108	WS 81108	40	42	60	60
45	AXK4565	AS 4565	LS 4565	GS 81109	WS 81109	45	47	65	65
50	AXK5070	AS 5070	LS 5070	GS 81110	WS 81110	50	52	70	70
55	AXK5578	AS 5578	LS 5578	GS 81111	WS 81111	55	57	78	78
60	AXK6085	AS 6085	LS 6085	GS 81112	WS 81112	60	62	85	85
65	AXK6590	AS 6590	LS 6590	GS 81113	WS 81113	65	67	90	90
70	AXK7095	AS 7095	LS 7095	GS 81114	WS 81114	70	72	95	95
75	AXK75100	AS 75100	LS 75100	GS 81115	WS 81115	75	77	100	100
80	AXK80105	AS 80105	LS 80105	GS 81116	WS 81116	80	82	105	105
85	AXK85110	AS 85110	LS 85110	GS 81117	WS 81117	85	87	110	110
90	AXK90120	AS 90120	LS 90120	GS 81118	WS 81118	90	92	120	120
100	AXK100135	AS 100135	LS 100135	GS 81120	WS 81120	100	102	135	135
110	AXK110145	AS 110145	LS 110145	GS 81122	WS 81122	110	112	145	145
120	AXK120155	AS 120155	LS 120155	GS 81124	WS 81124	120	122	155	155
130	AXK130170	AS 130170	LS 130170	GS 81126	WS 81126	130	132	170	170
140	AXK140180	AS 140180	LS 140180	GS 81128	WS 81128	140	142	180	178
150	AXK150190	AS 150190	LS 150190	GS 81130	WS 81130	150	152	190	188
160	AXK160200	AS 160200	LS 160200	GS 81132	WS 81132	160	162	200	198

Shaft Diameter	Bearing Designation	Body Dimensions				Basic Load Rating		Limiting Speed	Mass
Shaft Diameter		d	D	Dw	B	Cr Dynamic	Cor Static	Limiting Speed	Mass
mm		mm				N		rpm	g
10	NTB1024	10	24	2	2.75	7820	23900	15000	3.3
12	NTB1226	12	26	2	2.75	8340	26900	13000	3.8
15	NTB1528	15	28	2	2.75	8830	29900	12000	4.1
16	NTB1629	16	29	2	2.75	9070	31400	11000	4.3
17	NTB1730	17	30	2	2.75	9320	32900	11000	4.5
18	NTB1831	18	31	2	2.75	9550	34400	10000	4.7
20	NTB2035	20	35	2	2.75	11700	46500	9000	6.1
25	NTB2542	25	42	2	3	14400	64700	7500	8.2
30	NTB3047	30	47	2	3	15400	73300	6500	9.4
35	NTB3552	35	52	2	3.5	16300	81900	5500	10.6
40	NTB40603	40	60	3	3.5	24200	108000	5000	22
45	NTB4565	45	65	3	4	25900	121000	4500	24.5
50	NTB5070	50	70	3	4	27600	135000	4000	26.5
55	NTB5578	55	78	3	5	32400	171000	4000	33.5
60	NTB6085	60	85	3	4.75	38200	219000	3500	38.5
65	NTB6590	65	90	3	5.25	40100	237000	3000	41.5
70	NTB7095	70	95	4	5.25	47400	244000	3000	61
75	NTB75100	75	100	4	5.75	48400	256000	3000	65
80	NTB80105	80	105	4	5.75	49500	267000	2500	68.5
85	NTB85110	85	110	4	5.75	50300	279000	2500	72
90	NTB90120	90	120	4	6.5	64500	394000	2500	92
100	NTB100135	100	135	4	7	80300	541000	2000	119
110	NTB110145	110	145	4	7	83200	578000	2000	129
120	NTB120155	120	155	4	7	87900	634000	1800	139
130	NTB130170	130	170	5	9	20000	839000	1700	225

K3X5X7-TN	K18X24X13	K30X40X30	K55X62X18
K3X5X9-TN	K18X24X20	K32X37X13	K55X63X20
K3X6X7-TN	K18X25X22	K32X37X17	K55X63X25
K4X7X7-TN	K19X23X13	K32X37X27	K55X63X32
K4X7X10-TN	K19X23X17	K32X38X20	K58X65X18
K5X8X8-TN	K20X24X10	K32X39X16	K60X65X20
K5X8X10-TN	K20X24X13	K32X39X18	K60X65X30
K6X9X8-TN	K20X24X17	K32X40X25	K60X68X20
K6X9X10-TN	K20X26X12	K32X46X32	K60X68X23
K6X10X13-TN	K20X26X13	K35X40X13	K60X68X25
K7X9X7-TN	K20X26X17	K35X40X17	K60X75X42
K7X10X8-TN	K20X26X20	K35X40X25	K64X70X16
K7X10X10-TN	K20X28X16	K35X40X27-TN	K65X70X20
K8X11X8-TN	K20X28X20	K35X40X27	K65X70X30
K8X11X10-TN	K20X28X25	K35X42X16	K65X73X23
K8X11X13-TN	K20X30X30	K35X42X18	K65X73X30
K8X12X10-TN	K21X25X13	K35X42X20	K68X74X20
K9X12X10-TN	K22X26X10	K35X42X30	K68X74X30
K9X12X13-TN	K22X26X13	K35X45X20	K70X76X20
K10X13X10-TN	K22X26X17	K35X45X30	K70X76X30
K10X13X13-TN	K22X28X17	K37X42X17	K70X78X30
K10X13X16-TN	K22X29X16	K38X43X17	K72X80X20
K10X14X10-TN	K22X30X15-TN	K38X43X27	K73X79X20
K10X14X13-TN	K22X32X24	K38X46X20	K75X81X20
K10X16X12-TN	K23X35X16-TN	K38X46X32	K75X81X30
K12X15X10-TN	K23X35X16	K40X45X13	K75X83X23
K12X15X13-TN	K24X28X10	K40X45X17	K75X83X30
K12X16X13-TN	K24X28X13	K40X45X27	K80X86X20
K12X17X13-TN	K24X28X17	K40X47X18	K80X88X30
K12X18X12-TN	K24X30X17	K40X47X20	K85X92X20
K14X18X10	K25X29X10	K40X48X20	K90X97X20
K14X18X13	K25X29X13	K42X47X13	K90X98X27
K14X18X15-TN	K25X29X17	K42X47X17	K90X98X30
K14X18X17	K25X30X13	K42X50X20	K95X103X30
K14X20X12	K25X30X17	K43X48X17	K100X107X21
K15X18X17-TN	K25X30X20	K43X48X27	K100X108X27
K15X18X17	K25X31X17	K45X50X17	K100X108X30
K15X19X10	K25X31X21	K45X50X27	K105X112X21
K15X19X13	K25X32X16	K45X52X18	K110X117X24
K15X19X17	K25X33X20	K45X53X20	K110X118X30
K15X20X13	K25X33X24	K45X53X21	K115X123X27
K15X21X15	K25X35X30	K45X53X28	K120X127X24
K15X21X21	K26X30X13	K45X59X18-TN	K125X133X35
K16X20X10	K26X30X17	K45X59X32	K130X137X24
K16X20X13	K28X33X13	K47X52X17	K135X143X35
K16X20X17	K28X33X17	K47X52X27	K145X153X26
K16X22X12	K28X34X17	K50X55X13,5	K150X160X46
K16X22X16	K28X35X16	K50X55X17	K155X163X26
K16X22X20	K28X35X18	K50X55X20	K160X170X46
K16X24X20	K28X40X25	K50X55X30	K165X173X26
K17X21X10	K30X34X13	K50X57X18	K175X183X32
K17X21X13	K30X35X13	K50X58X20	K185X195X37
K17X21X17	K30X35X17	K50X58X25	K195X205X37
K18X22X10	K30X35X27	K52X57X12	K210X220X42
K18X22X13	K30X37X16	K55X60X20	K220X230X42
K18X22X17	K30X37X18	K55X60X27	K240X250X42
K18X24X12	K30X40X18	K55X60X30	K265X280X50
