Original Shaft Alignment Tool TKSA 51 , TKSA51

  • Original Shaft Alignment Tool TKSA 51 ,  TKSA51
  • Original Shaft Alignment Tool TKSA 51 ,  TKSA51
  • Original Shaft Alignment Tool TKSA 51 ,  TKSA51
  • Original Shaft Alignment Tool TKSA 51 ,  TKSA51
Original Shaft Alignment Tool TKSA 51 ,  TKSA51
Product Details:
Place of Origin: Sweden
Brand Name: Original
Model Number: TKSA 51 , TKSA51
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton Box
Delivery Time: 1 day upon your payment
Payment Terms: PayPal , Western Union, T/T, MoneyGram
Contact Now
Detailed Product Description

Shaft Alignment Tool TKSA 51
The Shaft Alignment Tool TKSA 51 provides high measurement flexibility and performance, suitable for entry-level to expert alignment jobs. Designed to work with the shaft alignment apps on a tablet or smart phone, this intuitive tool is easy to use and requires no special training. The included accessories enable use of the TKSA 51 for a wide range of alignment applications with horizontal and vertical shafts, such as motors, drives, fans, pumps, gearboxes and more. The apps include tutorial videos to show operators how to perform accurate measurements.
Measurement flexibility - The well-known, three-position measurement gains additional flexibility as measurements can start at any angle and require a total minimal rotation of only 40 degrees. This enables operators to perform alignments of applications with limited space.
Automatic reports - Alignment reports are generated automatically and can be customised with notes, a machine picture and a signature via touchscreen. The reports can easily be exported as PDF files and shared with other mobile apps.
Comprehensive and compact - A range of included components such as magnetic mounting brackets, extension rods and chains, increase the TKSA 51's versatility, yet it remains compact, lightweight and easy to carry.
3-D live view - This feature enables intuitive positioning of the heads for quick alignment measurements and displays the horizontal and vertical alignment correction live. The apps enable 3-D rotation of the virtual motor to correspond with the actual machine position view.
Disturbance compensation - Measurement values are averaged over time to provide greater accuracy in presence of external disturbances.
Free apps and demonstration mode - The alignments apps are available for free in the app stores. They feature a fully function demonstration mode and tutorial videos for performing alignments.
Also available as complete ready-to-use system with rugged, industrial display device and pre-installed apps (TKSA 51D2)



Properties

Alignment applications Horizontal shafts;Vertical shafts;Soft foot
Alignment methods 3 position measurement 9 -12 -3;Automatic measurement;Free measurement (only 40° shaft rotation needed)
Battery Li-ion battery, rechargeable with fast charging (10 minutes charging for 1 hour usage)
Battery life up to 8 hours
Case dimensions (l x w x h) 355 x 250 x 110 mm
Certifications Calibration certificate (2 years validity)
Communication Bluetooth 4.0 LE

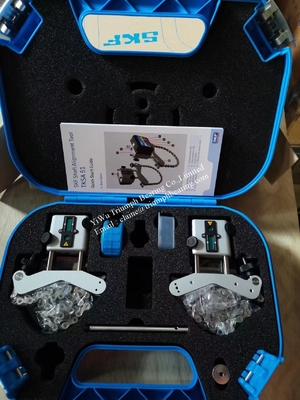

Contents 2x measuring units (M&S);2x shaft V-brackets with chains 480 mm, threaded rods 80 mm and 4x magnets each;4x threaded extension rods 120 mm;2x extension chains 980 mm;2x micro USB to USB split charging cables;Measuring tape;Printed certificate of calibration and conformance;Printed quick start guide (EN);2x A5 sheet with 6x QR code stickers per sheet (total of 12x stickers);SKF carrying case
Extra features Machine library;Pictures in reports;QR code reading;Target values;Disturbance compensation;Free 3D machine view;Screen rotation on tablets;Automatic .pdf report
Fixture 2x V-brackets (width 15 mm) with chains and magnets
Laser Red line laser class 2
Live correction values Vertical and horizontal
Maximum coupling height 45 mm with standard rods;165 mm with extension rods (included);plus 120 mm per set of extension rods
Operating system requirements Apple iOS 9 or Android OS 4.4.2 (and above)
Operating temperature range 0 to 45 °C
Power adapter Charging via micro USB 2.0 port (5V);Micro USB to USB charging cable included;Compatible with standard 5V USB chargers (not included)
Protection class IP 54
Sensors 20 mm PSD;Inclinometer ±0.1°
Shaft diameter 20 to 150 mm;up to 450 mm with extension chains (included)
Software/App update via Apple AppStore and Google Play Store
Suitable operating devices Samsung Galaxy Tab Active 2 (recommended);iPad Mini (recommended);iPad;iPod Touch;iPhone SE;Galaxy S6;
System measuring distance 0.07 to 5 m
Total weight (incl. case) 2.9
