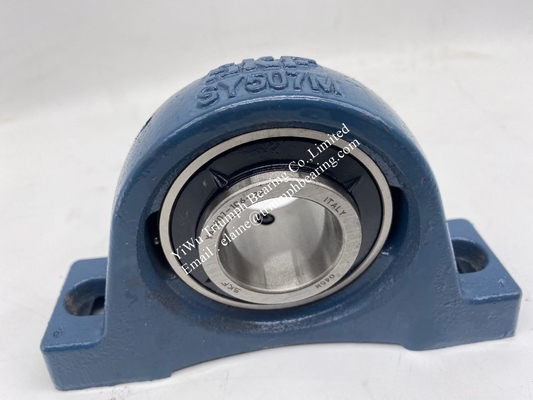

Model Number: | SY 1.3/8 TF |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | Carton Box |
Delivery Time: | 1 day upon your payment |
Payment Terms: | PayPal , Western Union, T/T, MoneyGram |
Technical specification
Compliance with standard |
ISO
|
Purpose specific |
For material handling applications
|
Housing material |
Cast iron
|
Sealing solution |
Standard seals with additional flingers
|
d |
34.925 mm
|
Bore diameter |
---|---|---|
d1 |
≈46.1 mm
|
Shoulder diameter inner ring |
A |
45 mm
|
Base width |
A1 |
27 mm
|
Top width |
A5 |
24.5 mm
|
Standout of end cover |
B |
42.9 mm
|
Width of inner ring |
B4 |
6 mm
|
Distance from locking device side face to thread centre |
H |
47.6 mm
|
Height of spherical seat centre |
H1 |
19 mm
|
Foot height |
H2 |
93 mm
|
Overall height |
J |
126 mm
|
Distance between attachment bolts |
J |
max.133 mm
|
Distance between attachment bolts |
J |
min.119 mm
|
Distance between attachment bolts |
L |
160 mm
|
Overall length |
N |
14 mm
|
Diameter of attachment bolt hole |
N1 |
21 mm
|
Length of attachment bolt hole |
s1 |
25.4 mm
|
Distance from locking device side face to raceway centre |
RG |
1/4-28 UNF
|
Housing thread for the grease fitting |
---|---|---|
R1 |
3 mm
|
Axial position of the housing thread |
Rα |
45 °
|
Angular position of the housing thread |
DN |
6.5 mm
|
Diameter of head sphere of grease fitting |
---|---|---|
SWN |
7 mm
|
Hexagonal key size for the grease fitting |
GN |
1/4-28 SAE-LT
|
Thread of the grease fitting |
J6 |
146 mm
|
Distance of dowel pins |
---|---|---|
J7 |
15.5 mm
|
Axial offset of dowel pins |
N4 |
4 mm
|
Recommended diameter for dowel pins |
Basic dynamic load rating | C |
25.5 kN
|
---|---|---|
Basic static load rating | C0 |
15.3 kN
|
Fatigue load limit | Pu |
0.655 kN
|
Limiting speed |
5 300 r/min
|
|
with shaft tolerance h6
|
Mass bearing unit |
1.5 kg
|
Set screw | G2 |
5/16-24 UNF
|
---|---|---|
Hexagonal key size for set screw |
3.969 mm
|
|
Recommended tightening torque for set screw |
6.5 Nm
|
|
Recommended diameter for attachment bolts, mm | G |
12 mm
|
Recommended diameter for attachment bolts, inch | G |
0.5 in
|
Housing | SY 507 M |
Bearing | YAR 207-106-2F |
End cover | ECY 207 |
