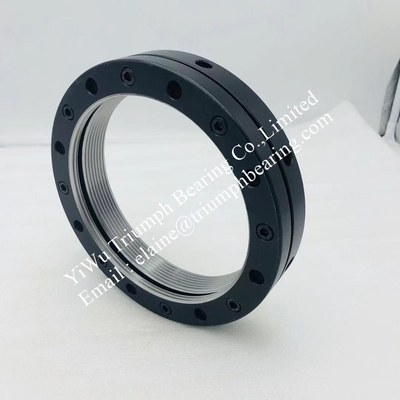

Precision lock nuts MSR-M150X3.0

Precision lock nuts MSR-M150X3.0

  • Precision  lock nuts   MSR-M150X3.0
  • Precision  lock nuts   MSR-M150X3.0
  • Precision  lock nuts   MSR-M150X3.0
  • Precision  lock nuts   MSR-M150X3.0
Precision  lock nuts   MSR-M150X3.0
Product Details:
Place of Origin: China
Model Number: MSR-M150X3.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton Box
Delivery Time: 1 day upon your payment
Payment Terms: PayPal , Western Union, T/T, MoneyGram
Contact Now
Detailed Product Description

Precision  lock nuts   MSR-M150X3.0 0
Precision  lock nuts   MSR-M150X3.0 1

Order No. Name
CAD-Download
Dimensions in mm Clamping screw Calcu-
lation-
factor
A Calcu-
lation-
factor
B Perm. axial
stress
d1 d2 d6 h ISO 4762 MA Units static
ISO-5H h11 h11 Nm mm N kN
K-10101001
MSR 10x0.75
M10x0,75 24 22 14 M3 2 3 0,672 2457 16
K-10101002
MSR 10x1
M10x1 24 22 15 M3 2 3 0,703 2457 15
K-10101201
MSR 12x1
M12x1 26 25 14 M3 2 3 0,819 2438 19
K-10101202
MSR 12x1.5
M12x1,5 26 25 15 M3 2 3 0,881 2438 18
K-10101401
MSR 14x1.5
M14x1,5 32 30 16 M4 2.9 3 0,997 2995 22
K-10101501
MSR 15x1
M15x1 33 31 16 M4 2.9 3 0,992 2984 25

Dimensions Locknuts MSR 16-200, Spieth Locknuts MSR 16-200, Spieth


Order No. Name
CAD-Download
Dimensions in mm Clamping screw Calcu-
lation-
factor
A Calcu-
lation-
factor
B Perm. axial
stress
d1 d2 h ISO 4762 MA Units static
ISO-5H h11 Nm mm N kN
K-10101601
MSR 16x1.5
M16x1,5 34 18 M4 2,9 4 1,112 3962 22
K-10101701
MSR 17x1
M17x1 35 18 M4 2,9 4 1,108 3947 25
K-10101801
MSR 18x1.5
M18x1,5 36 18 M4 2,9 4 1,228 3931 25
K-10102001
MSR 20x1
M20x1 40 18 M4 2,9 4 1,281 3900 29
K-10102002
MSR 20x1.5
M20x1,5 40 18 M4 2,9 4 1,344 3900 28
K-10102201
MSR 22x1.5
M22x1,5 40 18 M4 2,9 4 1,459 3869 32
K-10102401
MSR 24x1.5
M24x1,5 42 18 M4 2,9 4 1,575 3838 35
K-10102501
MSR 25x1.5
M25x1,5 45 20 M4 2,9 4 1,633 3822 47
K-10102601
MSR 26x1.5
M26x1,5 45 20 M4 2,9 4 1,69 3806 49
K-10102801
MSR 28x1.5
M28x1,5 46 20 M4 2,9 4 1,805 3775 53
K-10103001
MSR 30x1.5
M30x1,5 48 20 M4 2,9 4 1,921 3744 57
K-10103201
MSR 32x1.5
M32x1,5 50 22 M4 2,9 4 2,037 3713 64
K-10103501
MSR 35x1.5
M35x1,5 53 22 M4 2,9 4 2,21 3666 66
K-10103801
MSR 38x1.5
M38x1,5 58 22 M4 2,9 4 2,449 3619 75
K-10104001
MSR 40x1.5
M40x1,5 58 22 M4 2,9 4 2,5 3588 66
K-10104201
MSR 42x1.5
M42x1,5 60 22 M4 2,9 4 2,617 3557 66
K-10104501
MSR 45x1.5
M45x1,5 68 22 M4 2,9 6 2,789 5265 84
K-10104801
MSR 48x1.5
M48x1,5 68 25 M4 2,9 6 2,962 5195 94
K-10105001
MSR 50x1.5
M50x1,5 70 25 M4 2,9 6 3,079 5148 94
K-10105201
MSR 52x1.5
M52x1,5 72 25 M4 2,9 6 3,196 5101 96
K-10105501
MSR 55x1.5
M55x1,5 75 25 M4 2,9 6 3,369 5031 96
K-10105502
MSR 55x2
M55x2 75 25 M4 2,9 6 3,43 5031 96
K-10105801
MSR 58x1.5
M58x1,5 82 26 M5 6 6 3,541 8077 161
K-10106001
MSR 60x1.5
M60x1,5 84 26 M5 6 6 3,655 8001 163
K-10106002
MSR 60x2
M60x2 84 26 M5 6 6 3,718 8001 163
K-10106201
MSR 62x1.5
M62x1,5 86 28 M5 6 6 3,774 7925 186
K-10106501
MSR 65x1.5
M65x1,5 88 28 M5 6 6 3,948 7811 177
K-10106502
MSR 65x2
M65x2 88 28 M5 6 6 4,007 7811 177
K-10106801
MSR 68x1.5
M68x1,5 95 28 M5 6 6 4,121 7696 223
K-10107001
MSR 70x1.5
M70x1,5 95 28 M5 6 6 4,238 7620 203
K-10107002
MSR 70x2
M70x2 95 28 M5 6 6 4,297 7620 203
K-10107201
MSR 72x1.5
M72x1,5 98 28 M6 10 6 4,354 10692 170
K-10107501
MSR 75x1.5
M75x1,5 100 28 M6 10 6 4,525 10530 160
K-10107502
MSR 75x2
M75x2 100 28 M6 10 6 4,583 10530 160
K-10108001
MSR 80x2
M80x2 110 32 M6 10 6 4,873 10260 258
K-10108501
MSR 85x2
M85x2 115 32 M6 10 6 5,168 9990 262
K-10109001
MSR 90x2
M90x2 120 32 M6 10 6 5,453 9720 265
K-10109501
MSR 95x2
M95x2 125 32 M6 10 6 5,744 9450 268
K-10110001
MSR 100x2
M100x2 130 32 M6 10 6 6,033 9180 271
K-10110501
MSR 105x2
M105x2 135 32 M6 10 6 6,321 8910 274
K-10111001
MSR 110x2
M110x2 140 32 M6 10 6 6,616 8640 280
K-10111501
MSR 115x2
M115x2 145 36 M6 10 6 6,9 8370 329
K-10112001
MSR 120x2
M120x2 155 36 M6 10 6 7,193 8100 408
K-10112501
MSR 125x2
M125x2 160 36 M6 10 6 7,474 7830 412
K-10113001
MSR 130x3
M130x3 165 36 M6 10 6 7,895 7560 405
K-10114001
MSR 140x3
M140x3 180 36 M6 10 8 8,475 9360 476
K-10115001
MSR 150x3
M150x3 190 36 M6 10 8 9,05 8640 489
K-10116001
MSR 160x3
M160x3 205 40 M8 25 8 9,633 14520 552
K-10117001
MSR 170x3
M170x3 215 40 M8 25 8 10,213 13200 560
K-10118001
MSR 180x3
M180x3 230 40 M8 25 8 10,789 11880 648
K-10119001
MSR 190x3
M190x3 240 40 M8 25 8 11,362 10560 656
K-10120001
MSR 200x3
M200x3 245 40 M8 25 8 11,948 9240 578

Dimensions Locknuts MSR 210-380, Spieth Locknuts MSR 210-380, Spieth



Order No. Name
CAD-Download
Dimensions in mm Clamping screw Calcu-
lation-
factor
A Calcu-
lation-
factor
B Perm. axial
stress
d1 d2 h ISO 4762 ISO 4014 MA Units static
ISO-5H h11 Nm mm N kN
K-10121001
MSR 210x3
M210x3 270 44 M8 - 25 8 12.515 5280 598
K-10122001
MSR 220x3
M220x3 282 44 M8 - 25 8 13.097 5148 626
K-10123001
MSR 230x3
M230x3 295 44 M8 - 25 8 13.677 5016 664
K-10124001
MSR 240x3
M240x3 308 44 M8 - 25 8 14.256 4884 703
K-10125001
MSR 250x3
M250x3 322 44 M8 - 25 8 14.833 4752 752
K-10126001
MSR 260x3
M260x3 336 44 M8 - 25 10 15.408 5775 800
K-10127001
MSR 270x3
M270x3 350 44 M8 - 25 10 15.982 5610 849
K-10128001
MSR 280x3
M280x3 364 44 M8 - 25 10 16.578 5445 897
K-10129001
MSR 290x3
M290x3 376 44 M8 - 25 10 17.149 5280 925
K-10130001
MSR 300x3
M300x3 390 44 M8 - 25 10 17.717 5115 973
K-10131001
MSR 310x4
M310x4 400 54 - M10 49 10 18.437 7860 1098
K-10132001
MSR 320x4
M320x4 412 54 - M10 49 10 19.008 7598 1130
K-10133001
MSR 330x4
M330x4 424 54 - M10 49 10 19.578 7336 1163
K-10134001
MSR 340x4
M340x4 436 54 - M10 49 10 20.176 7074 1194
K-10135001
MSR 350x4
M350x4 450 54 - M10 49 10 20.743 6812 1253
K-10136001
MSR 360x4
M360x4 466 54 - M10 49 12 21.309 7860 1333
K-10137001
MSR 370x4
M370x4 478 54 - M10 49 12 21.905 7546 1366
K-10138001
MSR 380x4
M380x4 490 54 - M10 49 12 22.468 7231 1399
