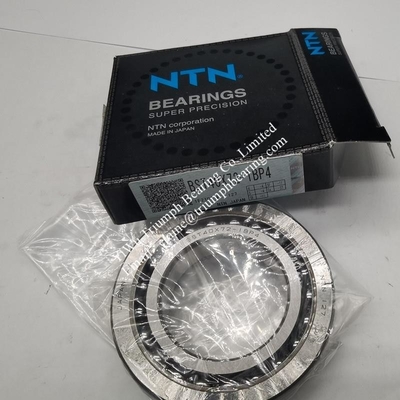

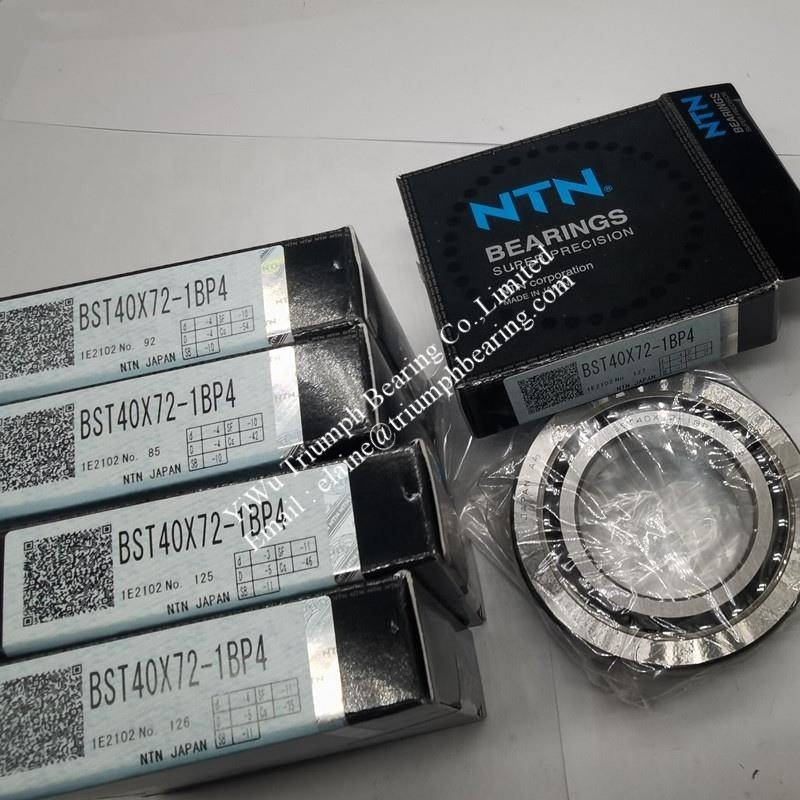

NTN High Precision Angular contact Ball bearing BST40X72-1BP4

NTN High Precision Angular contact Ball bearing BST40X72-1BP4

  • NTN  High Precision Angular contact Ball bearing BST40X72-1BP4
  • NTN  High Precision Angular contact Ball bearing BST40X72-1BP4
NTN  High Precision Angular contact Ball bearing BST40X72-1BP4
Product Details:
Place of Origin: Japan
Brand Name: NTN
Model Number: BST40X72-1BP4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton Box
Delivery Time: 1 day upon your payment
Payment Terms: PayPal , Western Union, T/T, MoneyGram
Contact Now
Detailed Product Description

TN série relative de roulement à billes à contact angulaire:



Point D D B R Charge Statique Charge Dynamique
2A-BST40X90-1BLX #02 1.5748 in40.000 mm 3.5433 in90.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 29200 lbf130000 N130.00 kN 13200 lbf58500 N58.50 kN
2A-BST45X100-1BL #03 1.7717 in45.000 mm 3.9370 in100.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 34500 lbf153000 N153.00 kN 13900 lbf62000 N62.00 kN
2A-BST45X100-1BP4 1.7717 in45.000 mm 3.9370 in100.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 34500 lbf153000 N153.00 kN 13900 lbf62000 N62.00 kN
2A-BST60X120-1BP4 2.3622 in60.000 mm 4.7244 in120.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 41000 lbf183000 N183.00 kN 15000 lbf66500 N66.50 kN
BST17X47-1B 0.6693 in17.000 mm 1.8504 in47.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 8450 lbf37500 N37.50 kN 5450 lbf24300 N24.30 kN
BST17X47-1BLXL 0.6693 in17.000 mm 1.8504 in47.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 8450 lbf37500 N37.50 kN 5450 lbf24300 N24.30 kN
BST17X47-1BP4 0.6693 in17.000 mm 1.8504 in47.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 8450 lbf37500 N37.50 kN 5450 lbf24300 N24.30 kN
BST20X47-1B 0.7874 in20.000 mm 1.8504 in47.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 8450 lbf37500 N37.50 kN 5450 lbf24300 N24.30 kN
BST20X47-1BLXL 0.7874 in20.000 mm 1.8504 in47.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 8450 lbf37500 N37.50 kN 5450 lbf24300 N24.30 kN
BST20X47-1BP4 0.7874 in20.000 mm 1.8504 in47.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 8450 lbf37500 N37.50 kN 5450 lbf24300 N24.30 kN
BST25X62-1B 0.9843 in25.000 mm 2.4409 in62.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 13300 lbf59000 N59.00 kN 6550 lbf29200 N29.20 kN
BST25X62-1BLXL 0.9843 in25.000 mm 2.4409 in62.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 13300 lbf59000 N59.00 kN 6550 lbf29200 N29.20 kN
BST25X62-1BLXLP4 0.9843 in25.000 mm 2.4409 in62.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 13300 lbf59000 N59.00 kN 6550 lbf29200 N29.20 kN
BST25X62-1BP4 0.9843 in25.000 mm 2.4409 in62.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 13300 lbf59000 N59.00 kN 6550 lbf29200 N29.20 kN
BST30X62-1B 1.1811 in30.000 mm 2.4409 in62.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 13300 lbf59000 N59.00 kN 6550 lbf29200 N29.20 kN
BST30X62-1BLXL 1.1811 in30.000 mm 2.4409 in62.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 13300 lbf59000 N59.00 kN 6550 lbf29200 N29.20 kN
BST30X62-1BP4 1.1811 in30.000 mm 2.4409 in62.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 13300 lbf59000 N59.00 kN 6550 lbf29200 N29.20 kN
BST30X62-20BLXLP4 1.1811 in30.000 mm 2.4409 in62.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 13300 lbf59000 N59.00 kN 6550 lbf29200 N29.20 kN
BST35X72-1B 1.3780 in35.000 mm 2.8346 in72.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 15700 lbf70000 N70.00 kN 6950 lbf31000 N31.00 kN
BST35X72-1BLXL 1.3780 in35.000 mm 2.8346 in72.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 15700 lbf70000 N70.00 kN 6950 lbf31000 N31.00 kN
BST35X72-1BP4 1.3780 in35.000 mm 2.8346 in72.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 15700 lbf70000 N70.00 kN 6950 lbf31000 N31.00 kN
BST35X72-21BLXLP #01 1.3780 in35.000 mm 2.8346 in72.000 mm 0.6693 in17.000 mm 0.0394 in1.000 mm 15700 lbf70000 N70.00 kN 6950 lbf31000 N31.00 kN
BST40X72-1B 1.5748 in40.000 mm 2.8346 in72.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 15700 lbf70000 N70.00 kN 6950 lbf31000 N31.00 kN
BST40X72-1BLXL 1.5748 in40.000 mm 2.8346 in72.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 15700 lbf70000 N70.00 kN 6950 lbf31000 N31.00 kN
BST40X72-1BP4 1.5748 in40.000 mm 2.8346 in72.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 15700 lbf70000 N70.00 kN 6950 lbf31000 N31.00 kN
BST40X72-20EP4 1.5748 in40.000 mm 2.8346 in72.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 15700 lbf70000 N70.00 kN 6950 lbf31000 N31.00 kN
BST40X72-20EP4/2AS 1.5748 in40.000 mm 2.8346 in72.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 15700 lbf70000 N70.00 kN 6950 lbf31000 N31.00 kN
BST40X90-1B 1.5748 in40.000 mm 3.5433 in90.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 29200 lbf130000 N130.00 kN 13200 lbf58500 N58.50 kN
BST40X90-1BLXL 1.5748 in40.000 mm 3.5433 in90.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 29200 lbf130000 N130.00 kN 13200 lbf58500 N58.50 kN
BST40X90-1BP4 1.5748 in40.000 mm 3.5433 in90.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 29200 lbf130000 N130.00 kN 13200 lbf58500 N58.50 kN
BST40X90-20BP4 1.5748 in40.000 mm 3.5433 in90.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 29200 lbf130000 N130.00 kN 13200 lbf58500 N58.50 kN
BST40X90-3BP4 1.5748 in40.000 mm 3.5433 in90.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 29200 lbf130000 N130.00 kN 13200 lbf58500 N58.50 kN
BST45X100-1B 1.7717 in45.000 mm 3.9370 in100.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 34500 lbf153000 N153.00 kN 13900 lbf62000 N62.00 kN
BST45X100-1BLXL 1.7717 in45.000 mm 3.9370 in100.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 34500 lbf153000 N153.00 kN 13900 lbf62000 N62.00 kN
BST45X100-1BP4 1.7717 in45.000 mm 3.9370 in100.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 34500 lbf153000 N153.00 kN 13900 lbf62000 N62.00 kN
BST45X75-1B 1.7717 in45.000 mm 2.9528 in75.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 17400 lbf77500 N77.50 kN 7200 lbf32000 N32.00 kN
BST45X75-1BLXL 1.7717 in45.000 mm 2.9528 in75.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 17400 lbf77500 N77.50 kN 7200 lbf32000 N32.00 kN
BST45X75-1BP4 1.7717 in45.000 mm 2.9528 in75.000 mm 0.5906 in15.000 mm 0.0394 in1.000 mm 17400 lbf77500 N77.50 kN 7200 lbf32000 N32.00 kN
BST50X100-1B 1.9685 in50.000 mm 3.9370 in100.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 34500 lbf153000 N153.00 kN 13900 lbf62000 N62.00 kN
BST50X100-1BLXL 1.9685 in50.000 mm 3.9370 in100.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 34500 lbf153000 N153.00 kN 13900 lbf62000 N62.00 kN
BST50X100-1BP4 1.9685 in50.000 mm 3.9370 in100.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 34500 lbf153000 N153.00 kN 13900 lbf62000 N62.00 kN
BST55X100-1B 2.1654 in55.000 mm 3.9370 in100.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 34500 lbf153000 N153.00 kN 13900 lbf62000 N62.00 kN
BST55X100-1BLXL 1.9685 in50.000 mm 3.9370 in100.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 34500 lbf153000 N153.00 kN 13900 lbf62000 N62.00 kN
BST55X100-1BP4 2.1654 in55.000 mm 3.9370 in100.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 34500 lbf153000 N153.00 kN 13900 lbf62000 N62.00 kN
BST55X120-1B 2.1654 in55.000 mm 4.7244 in120.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 41000 lbf183000 N183.00 kN 15000 lbf66500 N66.50 kN
BST55X120-1BL1P4 2.1654 in55.000 mm 4.7244 in120.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 41000 lbf183000 N183.00 kN 15000 lbf66500 N66.50 kN
BST55X120-1BLXL 2.1654 in55.000 mm 4.7244 in120.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 41000 lbf183000 N183.00 kN 15000 lbf66500 N66.50 kN
BST60X120-1B 2.3622 in60.000 mm 4.7244 in120.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 41000 lbf183000 N183.00 kN 15000 lbf66500 N66.50 kN
BST60X120-1BLXL 2.3622 in60.000 mm 4.7244 in120.000 mm 0.7874 in20.000 mm 0.0394 in1.000 mm 41000 lbf183000 N183.00 kN 15000 lbf66500 N66.50 kN
