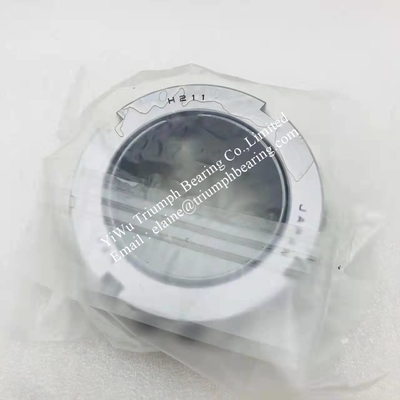

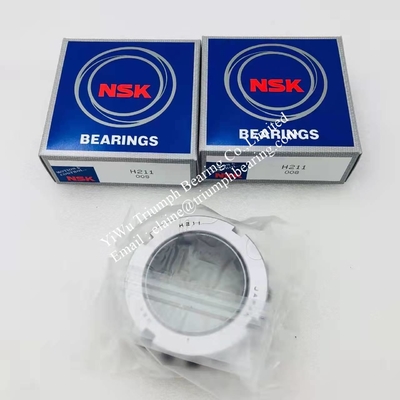

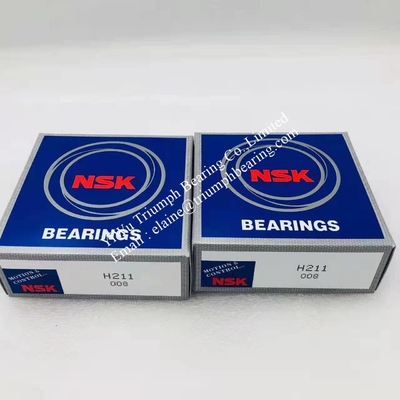

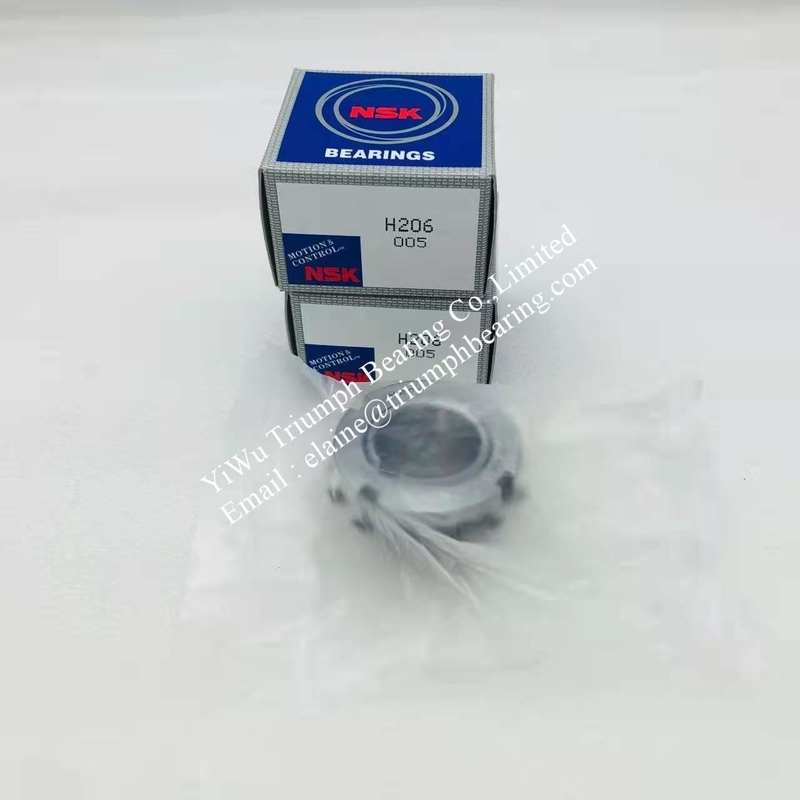

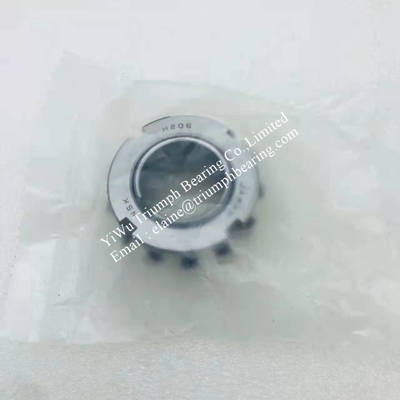

Adapter Sleeve H206 , H 206 , H211 , H 211

Product Details:

Place of Origin:	Japan
Brand Name:	NSK
Model Number:	H206 , H 206 , H211 , H 211

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Carton Box
Delivery Time:	1 day upon your payment
Payment Terms:	PayPal , Western Union, T/T, MoneyGram

Contact Now

Detailed Product Description

What Adapter Sleeve Series Can We Supply?

bearing pillow block adapter sleeve
H200 series	H202-H203-H204-H205-H206-H207-H208-H209-H210-H211-H212-H213-H214-H215-H216-H217-H218-H219-H220-H221-H222
H300 series	H302-H303-H304-H305-H306-H307-H308-H309-H310-H312-H313-H314-H315-H316-H317-H318-H319-H320-H321-H322
H3100 series	H3120-H3122-H3124-H3126-H3128-H3130- H3132-H3134-H3136-H3138-H3140-H3144-H3148-H3152-H-3156-H3160-H3164-H3168-H3172-H3180-H3184-H3188-H3192-H3196
H3000 series	H3024- H3024-H3026-H3028-H3030-H3032-H3034-H3036-H3038-H3040-H3044-H3048-H3052-H3056-H3060-H3064-H3068-H3072-H3076-H3080-H3084-H3088-H3092-H3096
H2300 series	H2304-H2305-H2306-H2307-H2308-H2309-H2310-H2311-H2312-H2313-H2314-H2315-H2316-H2356
H3200 series	H3260-H3264-H3268-H3272-H3276-H3280-H3284-H3288-H3292-H3296

What is adapter sleeve?

Adapter sleeve for tapered bore axis is fixed to the cylinder axis.This allows the shaft to be mounted directly to the shaft diameter of manufacturing tolerances than bearing large.

Adapter sleeve with lock nut and locking device sets supply.
Using hydraulic installation and removal of the large bearing is very convenient.
Adapter sleeve in this case has a sump and pump connectors

H2 系列紧定套基本尺寸和参数

型号	基本尺寸(mm)				配套轴承型号	质量 (kg)
型号	d	d₁	B₁	d₂	调心球轴承	质量 (kg)
H204	20	17	24	32	1204K	0.041
H205	25	20	26	38	1205K	0.070
H206	30	25	27	45	1206K	0.099
H207	35	30	29	52	1207K	0.125
H208	40	35	31	58	1208K	0.174
H209	45	40	33	65	1209K	0.227
H210	50	45	35	70	1210K	0.274
H211	55	50	37	75	1211K	0.308
H212	60	55	38	80	1212K	0.346
H213	65	60	40	85	1213K	0.401
H214	70	60	41	92	1214K	0.550
H215	75	65	43	98	1215K	0.707
H216	80	70	46	105	1216K	0.882
H217	85	75	50	110	1217K	1.02
H218	90	80	52	120	1218K	1.19
H219	95	85	55	125	1219K	1.37
H220	100	90	58	130	1220K	1.49
H222	110	100	63	145	1222K	1.39

H3 系列紧定套基本尺寸和参数

型号	基本尺寸(mm)				配套轴承型号		质量 (kg)
型号	d	d₁	B₁	d₂	调心球轴承	调心滚子轴承	质量 (kg)
H304	20	17	28	32	1304K 1504K	22204CK	0.045
H305	25	20	29	38	1305K 1505K	22205CK	0.075
H306	30	25	31	45	1306K 1506K	22206CK	0.109
H307	35	30	35	52	1307K 1507K	22207CK	0.142
H308	40	35	36	58	1308K 1508K	22208CK 22208CK	0.189
H309	45	40	39	56	1309K 1509K	22209CK 22209CK	0.248
H310	50	45	42	70	1310K 1510K	22210CK 22210CK	0.303
H311	55	50	45	75	1311K 1511K	22211CK 22211CK	0.345
H312	60	55	47	80	1312K 1512K	22212CK 22212CK	0.394
H313	65	60	50	85	1313K 1513K	22213CK 22213CK	0.458
H314	70	60	52	92	1314K 1514K	22214CK 22214CK	0.723
H315	75	65	55	98	1315K 1515K	22215CK 22215CK	0.831
H316	80	70	59	105	1316K 1516K	22216CK 22216CK	1.03
H317	85	75	63	110	1317K 1517K	22217CK 22217CK	1.18
H318	90	80	65	120	1318K 1518K	22218CK 22218CK	1.37
H319	95	85	68	125	1319K 1519K	22219CK 22219CK	1.56
H320	100	90	71	130	1320K 1520K	22220CK 22220CK	1.69
H322	110	100	77	145	1322K 1522K	22222CK 22222CK	2.18
