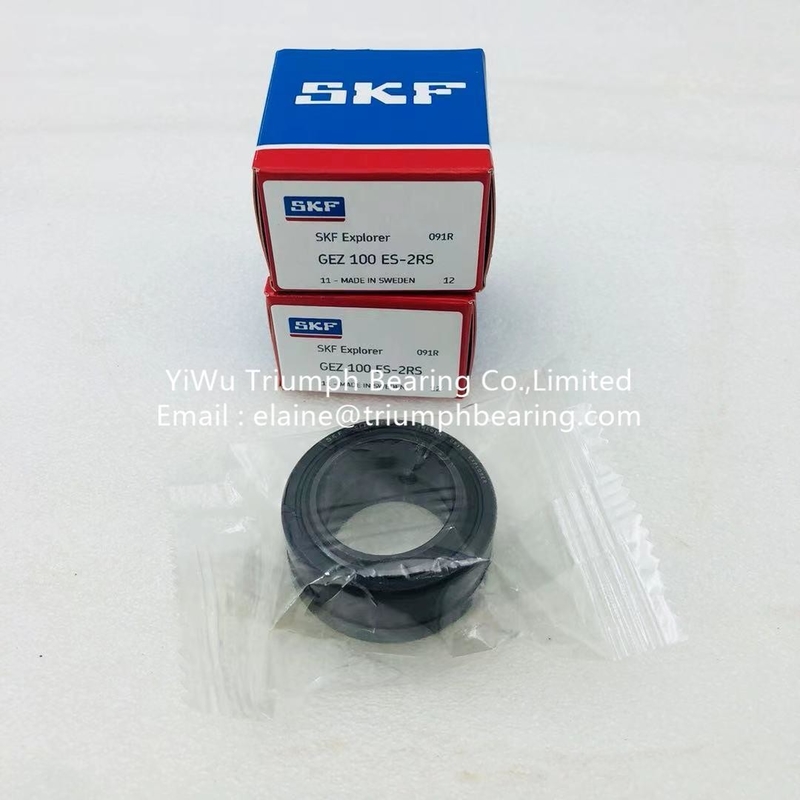

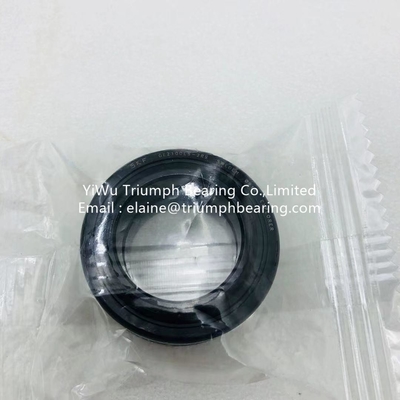

Spherical Plain Bearing GEZ100ES ,GEZ 100ES

Product Details:

Model Number:	GEZ100ES

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Carton Box
Delivery Time:	1 day upon your payment
Payment Terms:	PayPal , Western Union, T/T, MoneyGram

Contact Now

Detailed Product Description

GEZ 100 ES

Name: Spherical Plain Bearing GEZ100ES ,GEZ 100ES
Brand: Spherical Plain Bearing GEZ100ES ,GEZ 100ES
SKU: GEZ100ES
Rating: 4.6 (191 reviews)

Radial spherical plain bearings

- S: Annular groove and two lubrication holes in the inner and outer rings

Lubricant	Regular relubrication – grease
Design (sliding contact surface combination)	Steel/steel
Sealing solution	No seals

DIMENSIONS

d	25.4 mm	Bore diameter
D	41.275 mm	Outside diameter
B	22.225 mm	Nominal width
C	19.05 mm	Width outer ring
α	6 °	Angle of tilt
dk	36.5 mm	Raceway diameter inner ring
b	2.7 mm	Width annular lubrication groove at outer ring
b1	3 mm	Width annular lubrication groove at inner ring
M	2.5 mm	Diameter lubrication hole (outer ring)
r1	min.0.3 mm	Chamfer dimension bore
r2	min.1 mm	Chamfer dimension outer ring

ABUTMENT DIMENSIONS

da	min.27.5 mm	Abutment diameter shaft
da	max.29 mm	Abutment diameter shaft
Da	min.34.7 mm	Abutment diameter housing
Da	max.37.7 mm	Abutment diameter housing
ra	max.0.3 mm	Fillet radius shaft
rb	max.1 mm	Fillet radius housing

CALCULATION DATA

Basic dynamic load rating	C	56 kN
Basic static load rating	C0	166 kN
Specific dynamic load factor	K	100 N/mm²
Specific static load factor	K0	300 N/mm²
Material constant	KM	330

MASS

Mass plain bearing

0.12 kg

GEZ 008 ES GEZ 010 ES GEZ 012 ES GEZ 014 ES

GEZ 100 ES GEZ 104 ES GEZ 106 ES GEZ 108 ES

GEZ 112 ES GEZ 200 ES GEZ 204 ES GEZ 208 ES

GEZ 212 ES GEZ 300 ES GEZ 304 ES GEZ 308 ES

GEZ 312 ES GEZ 400 ES GEZ 408 ES GEZ 412 ES

GEZ 500 ES GEZ 600 ES

GEZ 100 ES-2RS GEZ 104 ES-2RS GEZ 106 ES-2RS GEZ 108 ES-2RS

GEZ 112 ES-2RS GEZ 200 ES-2RS GEZ 204 ES-2RS GEZ 208 ES-2RS

GEZ 212 ES-2RS GEZ 300 ES-2RS GEZ 304 ES-2RS GEZ 308 ES-2RS

GEZ 312 ES-2RS GEZ 400 ES-2RS GEZ 408 ES-2RS GEZ 412 ES-2RS

GEZ 500 ES-2RS GEZ 600 ES-2RS

GEZ 100 TE.2RS GEZ 104 TE.2RS GEZ 106 TE.2RS GEZ 108 TE.2RS

GEZ 112 TE.2RS GEZ 200 TE.2RS GEZ 204 TE.2RS GEZ 208 TE.2RS

GEZ 212 TE.2RS GEZ 300 TE.2RS GEZ 304 TE 2RS GEZ 308 TE.2RS

GEZ 312 TE.2RS GEZ 400 TE.2RS GEZ 408 TE.2RS GEZ 412 TE.2RS

GEZ 500 TE.2RS GEZ 600 TE.2RS

Bearing number		Dimensions mm/inch									Load ratings kN		Weight ≈kg
		d		D	B	C	dk	rs min	r1s min	α˚ ≈	Dynamic	Static
GEZ12ES			12.7	22.225	11.1	9.525	18	0.15	0.6	6	13	41	0.022
			0.5	0.875	0.437	0.375	0.709	0.006	0.024
GEZ15ES			15.875	26.988	13.894	11.913	23	0.15	0.6	6	22	65	0.036
			0.625	1.0625	0.547	0.469	0.906	0.006	0.024
GEZ19ES	GEZ19ES-2RS		19.05	31.75	16.662	14.275	27.5	0.3	0.6	6	31	95	0.053
			0.75	1.25	0.656	0.562	1.083	0.012	0.024
GEZ22ES	GEZ22ES-2RS		22.225	36.513	19.431	16.662	32	0.3	0.6	6	42	127	0.085
			0.875	1.4375	0.765	0.656	1.26	0.012	0.024
GEZ25ES	GEZ25ES-2RS		25.4	41.275	22.225	19.05	36.5	0.3	0.6	6	56	166	0.121
			1	1.625	0.875	0.75	1.437	0.012	0.024
GEZ31ES	GEZ31ES-2RS		31.75	50.8	27.762	23.8	45.5	0.6	0.6	6	86	260	0.23
			1.25	2	1.093	0.937	1.791	0.024	0.024
GEZ34ES	GEZ34ES-2RS		34.925	55.563	30.15	26.187	49	0.6	1	5	102	310	0.35
			1.375	2.1875	1.187	1.031	1.929	0.024	0.04
GEZ38ES	GEZ38ES-2RS		38.1	61.913	33.325	28.575	54.7	0.6	1	6	125	375	0.42
			1.5	2.4375	1.312	1.125	2.154	0.024	0.04
GEZ44ES	GEZ44ES-2RS		44.45	71.438	38.887	33.325	63.9	0.6	1	6	170	510	0.64
			1.75	2.8125	1.531	1.312	2.516	0.024	0.04
GEZ50ES	GEZ50ES-2RS		50.8	80.963	44.45	38.1	73	0.6	1	6	224	670	0.93
			2	3.1875	1.75	1.5	2.874	0.024	0.04
GEZ57ES	GEZ57ES-2RS		57.15	90.488	50.013	42.85	82	0.6	1	6	280	850	1.3
			2.25	3.5625	1.969	1.687	3.228	0.024	0.04
GEZ63ES	GEZ63ES-2RS		63.5	100.013	55.55	47.625	92	1	1	6	355	1060	1.85
			2.5	3.9375	2.187	1.875	3.622	0.04	0.04
GEZ69ES	GEZ69ES-2RS		69.85	111.125	61.112	52.375	100	1	1	6	415	1250	2.4
			2.75	4.375	2.406	2.062	3.937	0.04	0.04
GEZ76ES	GEZ76ES-2RS		76.2	120.65	66.675	57.15	109.5	1	1	6	500	1500	3.1
			3	4.75	2.625	2.25	4.311	0.04	0.04
GEZ82ES	GEZ82ES-2RS		82.55	130.175	72.238	61.9	119	1	1	6	585	1760	3.8
			3.25	5.125	2.844	2.437	4.685	0.04	0.04
GEZ88ES	GEZ88ES-2RS		88.9	139.7	77.775	66.675	128	1	1	6	680	2040	4.8
			3.5	5.5	3.062	2.625	5.039	0.04	0.04
GEZ95ES	GEZ95ES-2RS		95.25	149.225	83.337	71.425	137	1	1	6	780	2360	5.8
			3.75	5.875	3.281	2.812	5.394	0.04	0.04
GEZ101ES	GEZ101ES-2RS		101.6	158.75	88.9	76.2	146	1	1	6	900	2650	7
			4	6.25	3.5	3	5.748	0.04	0.04
GEZ107ES	GEZ107ES-2RS		107.95	168.275	94.463	80.95	155	1	1	6	1000	3000	8.4
			4.25	6.625	3.719	3.187	6.102	0.04	0.04
GEZ114ES	GEZ114ES-2RS		114.3	177.8	100.013	85.725	164.5	1	1	6	1120	3400	9.8
			4.5	7	3.937	3.375	6.476	0.04	0.04
GEZ120ES	GEZ120ES-2RS		120.65	187.325	105.562	90.475	173.5	1	1	6	1250	3750	11.5
			4.75	7.375	4.156	3.562	6.831	0.04	0.04
GEZ127ES	GEZ127ES-2RS		127	196.85	111.125	95.25	183	1	1	6	1400	4150	13.5
			5	7.75	4.375	3.75	7.205	0.04	0.04
GEZ152ES	GEZ152ES-2RS		152.4	222.25	120.65	104.775	207	1	1	5	1730	5200	17.5
			6	8.75	4.75	4.125	8.15	0.04	0.04
GEZ165ES	GEZ165ES-2RS		165.1	247.65	123.825	103.175	223	1.1	1.1	7	1830	5500	22.9
			6.5	9.75	4.875	4.062	8.78	0.043	0.043
GEZ177ES	GEZ177ES-2RS		177.8	266.7	133.35	111.125	240	1.1	1.1	7	2120	6390	28.6
			7	10.5	5.25	4.375	9.449	0.043	0.043
GEZ190ES	GEZ190ES-2RS		190.5	285.75	142.875	119.05	257	1.1	1.1	7	2440	7340	35.1
			7.5	11.25	5.625	4.687	10.118	0.043	0.043
GEZ203ES	GEZ203ES-2RS		203.2	304.8	152.4	127	275	1.1	1.1	7	2770	8350	42.6
			8	12	6	5	10.827	0.043	0.043
GEZ215ES	GEZ215ES-2RS		215.9	323.85	161.925	134.925	292	1.1	1.1	7	3130	9420	51.1
			8.5	12.75	6.375	5.312	11.496	0.043	0.043
GEZ228ES	GEZ228ES-2RS		228.6	342.9	171.45	142.875	309	1.1	1.1	7	3510	10500	60.7
			9	13.5	6.75	5.625	12.165	0.043	0.043
GEZ241ES	GEZ241ES-2RS		241.3	361.95	180.975	150.8	326	1.1	1.1	7	3910	11700	71.4
			9.5	14.25	7.125	5.937	12.835	0.043	0.043
GEZ254ES	GEZ254ES-2RS		254	381	190.5	158.75	343	1.1	1.1	7	4340	13050	83.3
			10	15	7.5	6.25	13.504	0.043	0.043
GEZ266ES	GEZ266ES-2RS		266.7	400.05	200.025	166.675	360	1.1	1.1	7	4780	14300	96.4
			10.5	15.75	7.875	6.562	14.173	0.043	0.043
GEZ279ES	GEZ279ES-2RS		279.4	419.1	209.55	174.625	377	1.1	1.1	7	5250	15700	110.8
			11	16.5	8.25	6.875	14.843	0.043	0.043
GEZ292ES	GEZ292ES-2RS		292.1	438.15	219.075	182.55	395	1.1	1.1	7	5740	17200	126.7
			11.5	17.25	8.625	7.187	15.551	0.043	0.043
GEZ304ES	GEZ304ES-2RS		304.8	457.2	228.6	190.5	412	1.1	1.1	7	6250	18700	143.9
