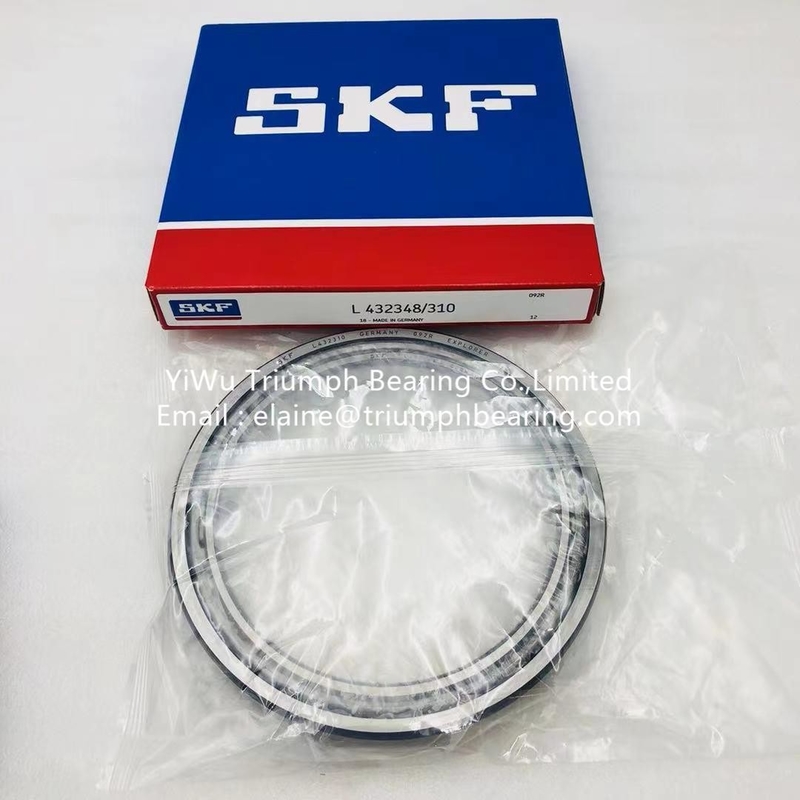

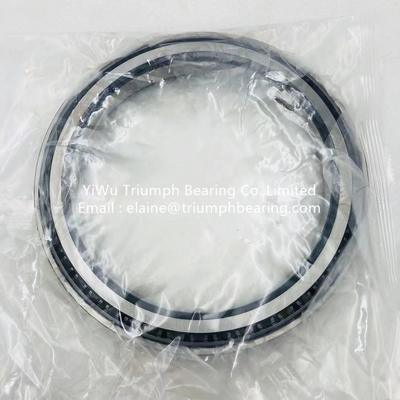

L 432348/310 Tapered roller bearings, single row

L 432348/310 Tapered roller bearings, single row

  • L 432348/310 Tapered roller bearings, single row
  • L 432348/310 Tapered roller bearings, single row
L 432348/310 Tapered roller bearings, single row
Product Details:
Model Number: L432348/310
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton Box
Delivery Time: 1 day upon your payment
Payment Terms: PayPal , Western Union, T/T, MoneyGram
Contact Now
Detailed Product Description



Dimension series
L 432300
Dimensions - L 432348/310

DIMENSIONS

d
158.75 mm
 Bore diameter
D
205.583 mm
 Outside diameter
T
23.812 mm
 Total bearing width
d1
≈181.4 mm
 Inner ring shoulder diameter
B
23.812 mm
 Width inner ring
C
18.258 mm
 Width outer ring
r1,2
min.4.8 mm
 Corner radius inner ring
r3,4
min.1.5 mm
 Corner radius outer ring
a
32.747 mm
 Distance pressure point
Abutment dimensions - L 432348/310

ABUTMENT DIMENSIONS

da
max.172 mm
 Abutment diameter shaft
db
min.176.5 mm
 Abutment diameter shaft
Da
min.194 mm
 Abutment diameter housing
Da
max.195 mm
 Abutment diameter housing
Db
min.197 mm
 Abutment diameter housing
Ca
min.5 mm
 Abutment housing - axial space at the large side face/ both sides of the outer ring
Cb
min.5.5 mm
 Abutment housing - axial space at the small side face/ both sides of the outer ring
ra
max.4.8 mm
 Fillet radius
rb
max.1.5 mm
 Fillet radius

CALCULATION DATA

Basic dynamic load rating C
168 kN
Basic static load rating C0
280 kN
Fatigue load limit Pu
27 kN
Reference speed
2 200 r/min
Limiting speed
2 800 r/min
Calculation factor e
0.37
Calculation factor Y
1.6
Calculation factor Y0
0.9

MASS

Mass bearing
1.92 kg
