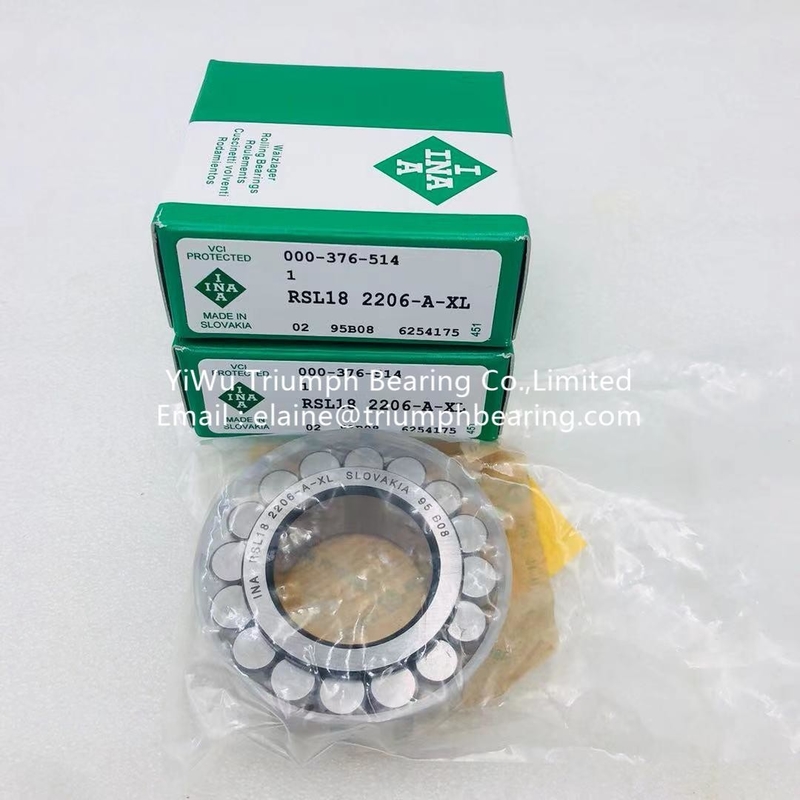

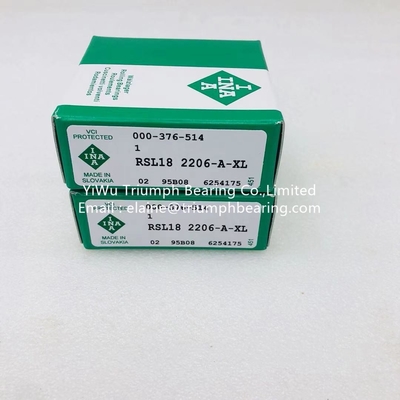

INA Full Complement Cylindrical Roller Bearing RSL182206-A-XL

INA Full Complement Cylindrical Roller Bearing RSL182206-A-XL

  • INA Full Complement Cylindrical Roller Bearing   RSL182206-A-XL
  • INA Full Complement Cylindrical Roller Bearing   RSL182206-A-XL
INA Full Complement Cylindrical Roller Bearing   RSL182206-A-XL
Product Details:
Place of Origin: Germany
Brand Name: INA
Model Number: RSL182206-A-XL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton Box
Delivery Time: 1 day upon your payment
Payment Terms: PayPal , Western Union, T/T, MoneyGram
Contact Now
Detailed Product Description

Main Specifications

  • Availability240 pcs
  • BrandINA
  • Item NumberRSL182206-A-XL INA
  • Also known asRSL182206-A
  • EAN4012802288490
  • CategoryCylindrical Roller Bearing Single Row

Weight and Dimensions

  • Inner (d) MM30
  • Weight (kg)0.185

Product Properties

  • BoreC - Cylindrical Bore
  • SealNo Seal
  • Cage TypeFC - Full Complement, No Cage
  • External ModificationNo External Modification
  • Radial Internal PlayCn Normal Internal Play
  • PrecisionStandard Precision
  • Heat StabilizationNo Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

  • Radial Static Load Rating C0r (N)64000
  • Radial Dynamic Load Rating Cr (N)70000





Bearing Model Weight (kg) D (mm) Dr (mm) B (mm)
RSL183004 0.062 20 36 16
RSL182204 0.1 20 41 18
RSL183005 0.078 25 42 16
RSL182205 0.116 25 46 18
RSL182305 0.21 25 53 24
RSL183006 0.12 30 49 19
RSL182206 0.185 30 55 20
RSL182306 0.33 30 62 27
RSL183007 0.15 35 55 20
RSL182207 0.265 35 63 23
RSL182307 0.5 35 72 31
RSL183008 0.188 40 61 21
RSL182208 0.328 40 70 23
RSL182308 0.74 40 83 33
RSL183009 0.22 45 66 23
RSL182209 0.33 45 74 23
RSL182309 0.82 45 88 36
RSL183010 0.247 50 72 23
RSL182210 0.4 50 81 23
RSL182310 1.18 50 98 40
RSL183011 0.402 55 83 26
RSL182211 0.528 55 88 25
RSL182311 1.55 55 109 43
RSL183012 0.425 60 86 26
RSL182212 0.755 60 99 28
RSL182312 1.8 60 115 46
RSL183013 0.492 65 93 26
RSL182213 0.935 65 106 31
RSL182313 2.37 65 126 48
RSL183014 0.597 70 100 30
RSL182214 0.982 70 111 31
RSL182314 2.64 70 132 51
RSL183015 0.724 75 107 30
RSL182215 1.03 75 115 31
RSL182315 3.44 75 143 55
RSL183016 0.948 80 116 34
RSL182216 1.33 80 125 33
RSL182316 4.35 80 154 58
RSL183017 0.993 85 121 34
RSL182217 1.61 85 133 36
RSL182317 5 85 163 60
RSL183018 1.28 90 130 37
RSL182218 1.96 90 140 40
RSL182318 5.17 90 165 64





Double Row Cylindrical roller bearing RSL series :

RSL1850 SERIES (Double rows)
Item Weight(kg) d(mm) Dr(mm) B(mm)
RSL185004 0.12 20 36 30
RSL185005 0.144 25 42 30
RSL185006 0.27 30 49 34
RSL185007 0.28 35 55 36
RSL185008 0.349 40 61 38
RSL185009 0.4 45 66 40
RSL185010 0.46 50 72 40
RSL185011 0.86 55 83 46
RSL185012 0.895 60 86 46
RSL185013 0.94 65 93 46
RSL185014 1.12 70 100 54
RSL185015 1.35 75 107 54
RSL185016 1.8 80 116 60
RSL185017 1.85 85 121 60
RSL185018 2.6 90 130 67
RSL185020 2.6 100 139 67
RSL185022 3.95 110 156 80
RSL185024 4.52 120 167 80
RSL185026 6.7 130 183 95
RSL185028 7.914 140 197 95
RSL185030 8.215 150 206 100
RSL185032 11.09 160 224 109
RSL185034 15.6 170 242 122
RSL185036 20.45 180 260 136
RSL185038 21.2 190 269 136
RSL185040 27.4 200 287 150
