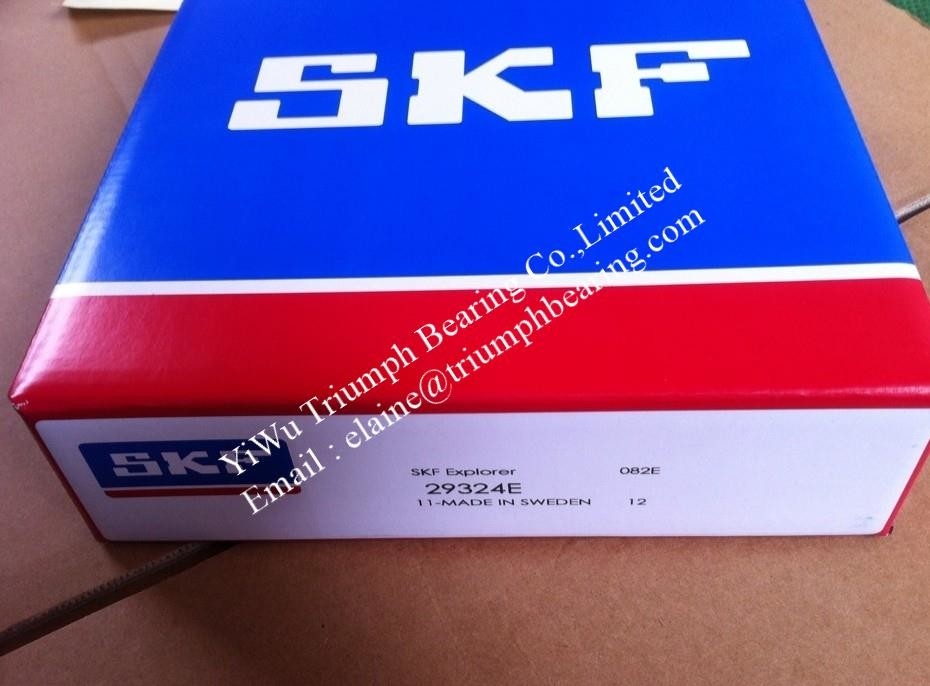

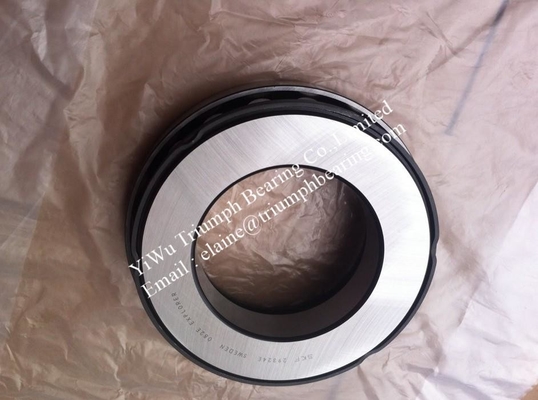

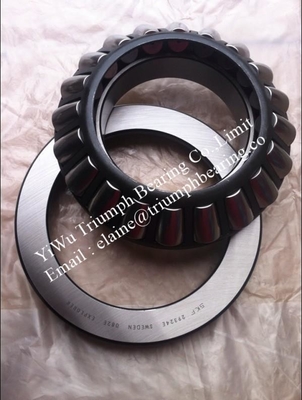

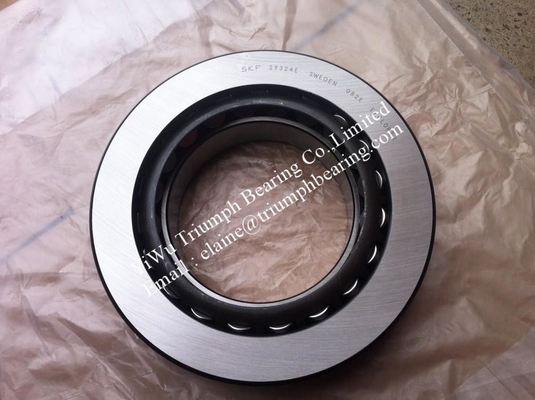

Spherical roller thrust bearings 29324E

  • Spherical roller thrust bearings 29324E
  • Spherical roller thrust bearings 29324E
  • Spherical roller thrust bearings 29324E
Spherical roller thrust bearings 29324E
Product Details:
Model Number: 29324E
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton Box
Delivery Time: 1 day upon your payment
Payment Terms: PayPal , Western Union, T/T, MoneyGram
Contact Now
Detailed Product Description





29324 E
Spherical roller thrust bearings​
Dimensions - 29324 E

DIMENSIONS

d
120 mm
Bore diameter
D
210 mm
Outside diameter
H
54 mm
Nominal Height
d1
188 mm
Outside diameter of shaft washer end side face
D1
155 mm
Shoulder diameter outer ring
B
34 mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage)
B1
48.2 mm
Height shaft washer + cage
C
27 mm
Height housing washer
s
70 mm
Distance from shaft washer end side face to pressure point
r1,2
min.2.1 mm
Chamfer dimension shaft washer
Abutment dimensions - 29324 E

ABUTMENT DIMENSIONS

da
min.160 mm
Abutment diameter shaft
db1
max.128 mm
Abutment diameter spacer ring (E design bearings)
db2
max.128 mm
Abutment diameter spacer ring (E design bearings)
Da
max.181 mm
Abutment diameter housing
ra
max.2 mm
Fillet radius

CALCULATION DATA

Basic dynamic load rating C
765 kN
Basic static load rating C0
2 120 kN
Fatigue load limit Pu
245 kN
Reference speed
1 700 r/min
Limiting speed
2 800 r/min
Minimum axial load factor A
0.43

MASS

Mass bearing
7.35 kg







Model Model Model Model Spherical roller Bearing
29412E 29260 293/710 EM 29332E 21309 EK
29413E 29360 E 294/710 EF 29432E 22309 EK
29414E 29460 E 292/750 EM 29334E 22210 EK
29415E 29264 293/750 29434E 21310 EK
29416E 29364E 294/750 EF 29236E 22310 EK
29317E 29464 E 292/800 EM 29336 E 22211 EK
29417E 29268 293/800 29436E 21311 EK
29318E 29368 294/800 EF 29338 E 22311 EK
29418E 29468E 292/850 EM 29438 E 22212 EK
29320E 29272 294/850 EF 29240E 21312 EK
29420E 29372 294/900 EF 29340E 22312 EK
29322E 29472 EM 292/950 EM 29440E 22213 EK
29422E 29276 294/950 EF 29244E 21313 EK
29324E 29376 292/1060 EF 29344E 22313 EK
29424E 29476 EM 294/1060 EF 29444E 22214 EK
29326E 29280 292/1180 EF 29248 21314 EK
29426E 29380 293/1250 EF 29348 E 22314 EK
29328E 29480 EM 293/1600 EF 29448 E 22215 EK
29428E 29284 29356 E 29252 21315 EK
29230E 29384 29456 E 29352E 22315 EK
29330E 29484 EM 292/670 29452E 22216 EK
29430E 29288 294/670 EM 29256 21316 EK
