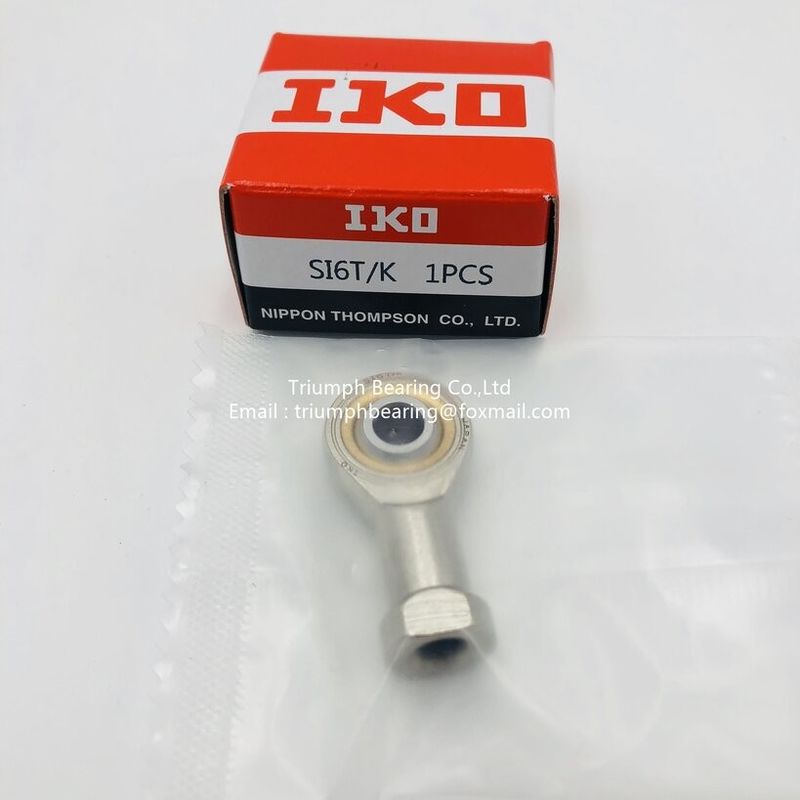

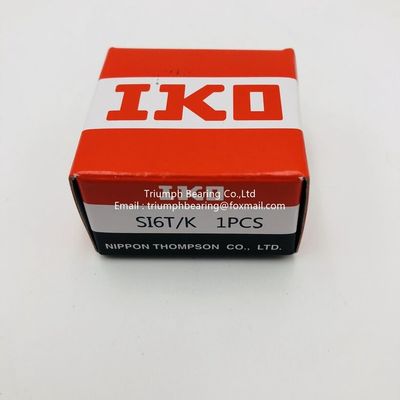

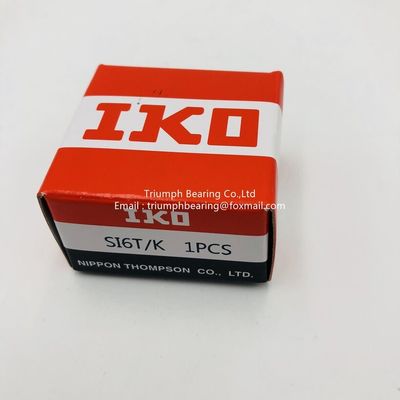

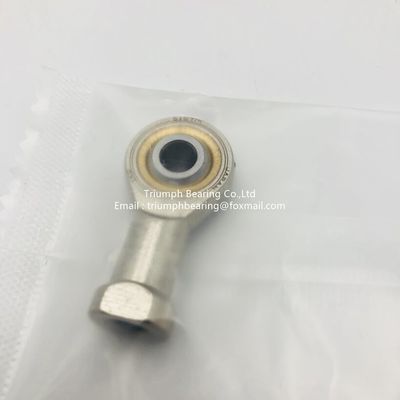

IKO Rod End Bearing S16T/K

IKO Rod End Bearing S16T/K

  • IKO Rod End Bearing S16T/K
  • IKO Rod End Bearing S16T/K
  • IKO Rod End Bearing S16T/K
  • IKO Rod End Bearing S16T/K
IKO Rod End Bearing S16T/K
Product Details:
Place of Origin: Japan
Brand Name: IKO
Model Number: S16T/K
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton Box
Delivery Time: 1 day upon your payment
Payment Terms: PayPal , Western Union, T/T, MoneyGram
Contact Now
Detailed Product Description

IKO Rod End Bearing S16T/K 0







ITEM Dimension (mm) Weight
Right hand Lift hand d d3 B C1 L3 W d2 d1 h1 L7 L4 L5 d4 d5 dK a kg
      6H     min         min           ≈
PHS4 PHSL4 4 M4x0.7 7 5.25 8 8 14 6.5 24 7 31 4 8 9.5 9.525 13 0.009
PHS5 PHSL5 5 M5x0.8 8 6 10 9 16 7.7 27 8 35 4 8.5 11 11.11 13 0.016
PHS6 PHSL6 6 M6x1.0 9 6.75 12 11 18 8.96 30 9 39 5 10 13 12.7 13 0.022
PHS8 PHSL8 8 M8x1.25 12 9 16 14 22 10.4 36 11 47 5 12.5 16 15.875 14 0.047
PHS10 PHSL10 10 M10x1.5 14 10.5 20 17 26 12.9 43 13 56 6.5 15 19 19.05 13 0.077
PHS10-1 PHSL10-1 10 M10x1.25 14 10.5 20 17 26 12.9 43 13 56 6.5 15 19 19.05 13 0.077
PHS12 PHSL12 12 M12x1.75 16 12 22 19 30 15.4 50 15 65 6.5 17.5 22 22.225 13 0.1
PHS12-1 PHSL12-1 12 M12x1.25 16 12 22 19 30 15.4 50 15 65 6.5 17.5 22 22.225 13 0.1
PHS14 PHSL14 14 M14x2.0 19 13.5 25 22 34 16.9 57 17 74 8 20 25 25.4 16 0.16
PHS14-1 PHSL14-1 14 M14x1.5 19 13.5 25 22 34 16.9 57 17 74 8 20 25 25.4 16 0.16
PHS16 PHSL16 16 M16x2.0 21 15 28 22 40 19.4 64 20 84 8 22 27 28.575 15 0.22
PHS16-1 PHSL16-1 16 M16x1.5 21 15 28 22 40 19.4 64 20 84 8 22 27 28.575 15 0.22
PHS18 PHSL18 18 M18x1.5 23 16.5 32 27 44 21.9 71 22 93 10 25 31 31.75 15 0.32
PHS20 PHSL20 20 M20x1.5 25 18 33 30 50 24.4 77 25 102 10 27.5 34 34.925 14 0.42
PHS22 PHSL22 22 M22x1.5 28 20 37 32 54 25.8 84 27 111 12 30 38 38.1 15 0.54
PHS25 PHSL25 25 M24x2.0 31 22 42 36 60 29.6 94 30 124 12 33.5 42 42.86 15 0.73
PHS28 PHSL28 28 M27x2.0 35 24 48 41 66 32.3 103 33 136 14 37 46 47.63 15 0.98
PHS30 PHSL30 30 M30x2.0 37 25 51 41 70 34.8 110 35 145 15 40 50 50.8 17 1.1
PHS30-1 PHSL30-1 30 M27x2.0 37 25 51 41 70 34.8 110 35 145 15 40 50 50.8 17 1.1
